Description

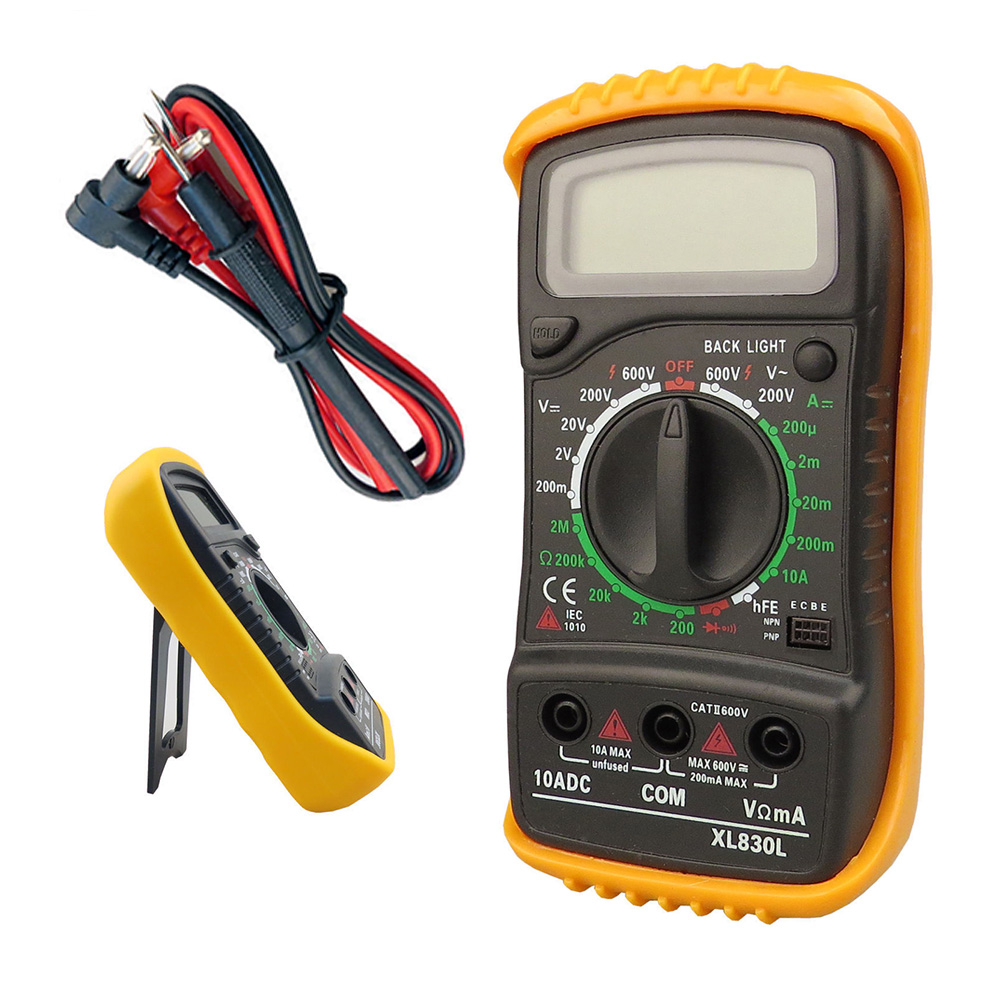

Brand New Digital Multimeter Voltmeter Ammeter

Heavy-Duty General Purpose Multimeter

This Heavy-Duty General purpose Multimeter features a Clear,

Easy to Read LCD Display.

Overload Protection on all ranges

Back Light Function

Low Battery Voltage Indication

Portable & Compact Design

Data Hold Function, Temperature Probe (optional) & Diode Test Facility

20 Position Rotary Switch

Removable Thick rubber casing protects Multimeter from splashes & Minor Bumps

Measures AC & DC Voltage, DC Current, Resistance, Temperature (optional),

Audible Continuity, Diode/Transistor Verification Mode

DC VOLTAGE Range Resolution Accuracy

200mV 100µV ±0.5% +2 2V 1mV ±0.5% +3 20V –

10mV ±0.8% +3 200V 100mV ±0.8% +3 600V 1V ±0.8% +5

AC VOLTAGE Range Resolution Accuracy

200V 100mV ±1.5% +10 600V 1V ±1.5% +10

DC CURRENT Range Resolution Accuracy

200µA 0.1µA ±1% +5 2mA 1µA ±1% +5 20mA 10µA ±1%

+5 200mA 100µA ±2.0% +5 10A 10mA ±3.0% +5

RESISTANCE Range Resolution Accuracy

200? 0.1? ±1.0% +2 2K? 1? ±1.0% +2 20K? 10? ±1.0%

+2 200K? 100? ±1.0% +2 2M? 1K? ±1.0% +2

New and high quality

CMOS integrated circuit and dual slope A/D conversion,

auto zero and select polarity

70 x 40mm big lcd screen, word size up to 25mm

The best display visual angle is approx 70°

It will auto turn off after starting up 25 minutes

High reliable measure range and 32 gears are

more effective to avoid false operation

Support transistor add Diode test

Notes

Please do not change the inner circuit to avoid damaging the ammeter

Do not connect it to the voltage over 1000VDC or 750VAC

Make sure not connect the error measure range

Please do not use the ammeter if the back cover is wrong

Please remove the pen and cut off the power before replacing battery and fuse
